Sheet Pile Wall Designer
Sheet pile walls — cantilever and supported — with section optimisation and full reporting.
Launch Sheet Pile Wall Designer Subscribed
Inside the app

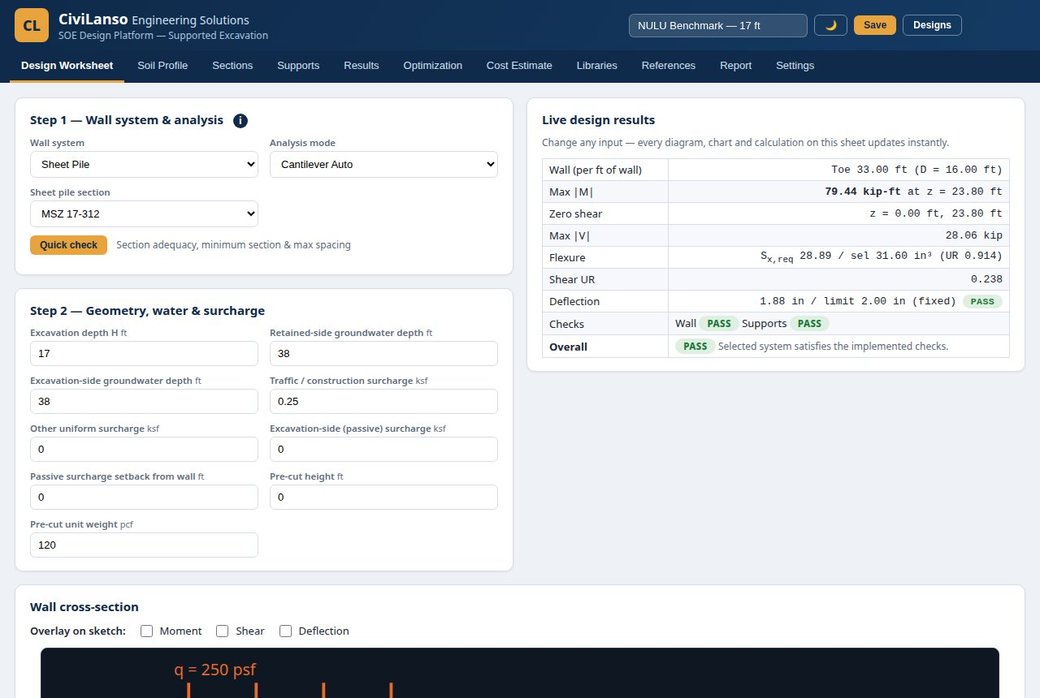

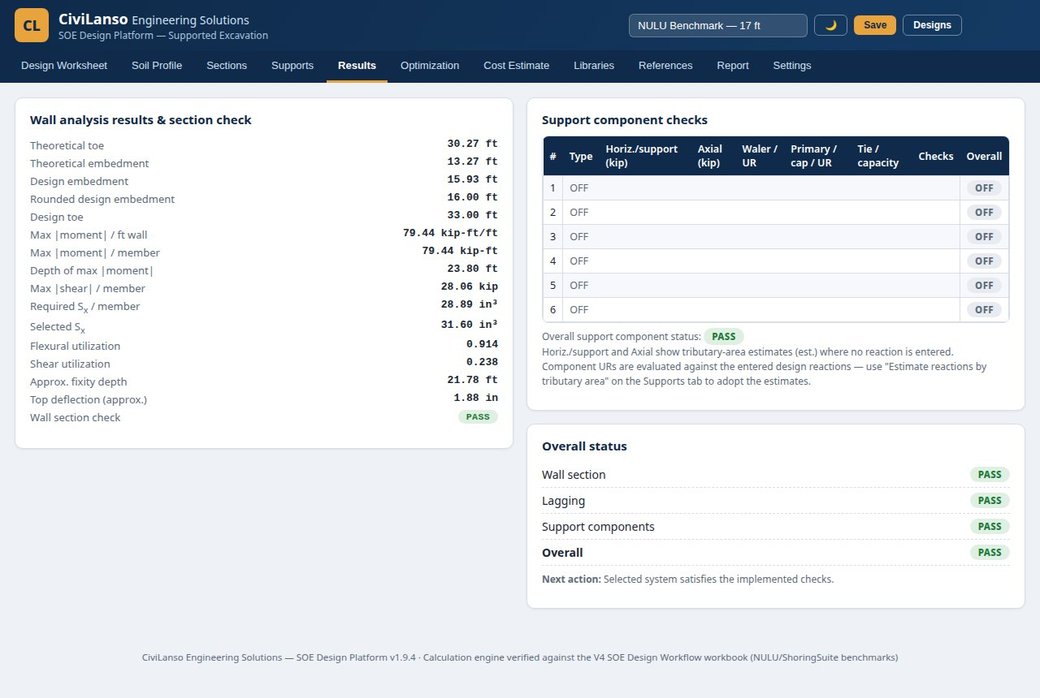

Screenshots from the real app — what you see is what you get.
What it does
The SOE Design Platform locked to sheet piling: 106 sheet-pile sections, cantilever-auto embedment, supported analysis with user reactions, and the same branded reporting and cost estimate as the soldier-pile app.
Features
- 106 sheet-pile sections (MSZ, PZ, SKZ, AZ and more)
- Cantilever-auto toe search and supported-wall analysis
- Props, tiebacks, rakers and deadman support checks
- Deflection estimate with fixity calibration
- Cost estimate with editable Texas rates and takeoff
- Branded Word (.docx) and PDF calculation reports
How it works
- Enter soils, geometry and groundwater
- Pick a section or let the optimiser choose
- Check utilisation, deflection and supports
- Export the branded calculation report
Subscription
$29 / month — billed monthly, per app. Cancel anytime from My Account; access runs to the end of the paid month.
One CiviLanso account works across every app. Try the free demo first — no card required.
Worked example — the same NULU ground as a sheet pile wall
Take the NULU Crossing ground profile — 17 ft of silty clay over loose sand — and design it as a sheet pile wall instead. The app recommends MSZ 17-312 at 16.0 ft embedment for the 1-ft strip, with the same step-by-step report, so you can compare systems on identical ground in minutes.
Details
| Method | Effective-stress (Rankine) pressures; 1-ft strip analysis; cantilever toe search or supported analysis |
|---|---|
| Sections | 106 sheet-pile sections (MSZ, PZ, SKZ, AZ and more), auto-optimised |
| Supports | Props, tiebacks, rakers and deadman — capacity checks included |
| Checks | Flexure, shear, deflection (with fixity calibration), support capacity |
| Optimisation | Minimum section for the wall you entered |
| Outputs | Branded Word (.docx) and PDF calculation report + cost estimate with editable Texas rates |
| Platform | Runs in the browser; designs save to your account and sync across devices |
| Demo | Free demo — full designer, exports disabled |
