Soldier Pile Wall Designer
Cantilever and supported soldier-pile walls with lagging — designed, checked and reported in minutes.
Launch Soldier Pile Wall Designer Subscribed
Inside the app
Screenshots from the real app — what you see is what you get.
What it does
The SOE Design Platform locked to soldier pile & lagging: effective-stress pressures, cantilever toe search, section and lagging optimisation, props, tiebacks and rakers, deflection checks and a full step-by-step Word/PDF calculation report.
Features
- Cantilever-auto toe search and supported-wall analysis
- 181 W-sections + 16 timber lagging sections, auto-optimised
- Props, tiebacks, rakers and deadman support checks
- Deflection estimate with fixity calibration
- Cost estimate with editable Texas rates and takeoff

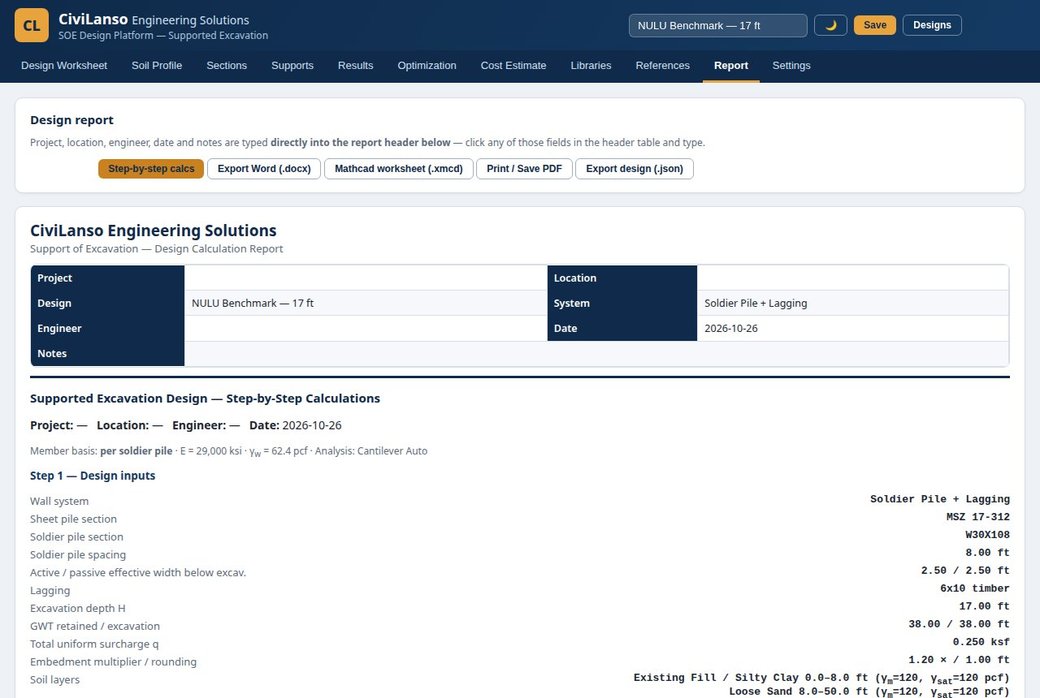

- Branded Word (.docx) and PDF calculation reports
How it works

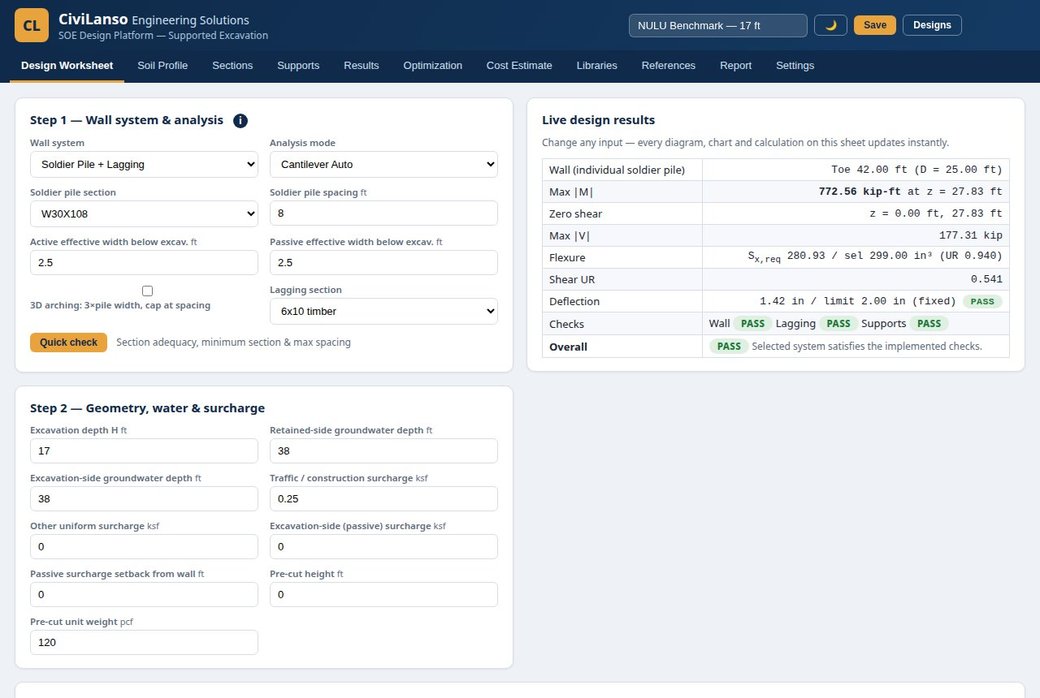

- Enter soils, geometry and groundwater
- Pick sections or let the optimiser choose
- Check utilisation, deflection and supports
- Export the branded calculation report
Subscription
$29 / month — billed monthly, per app. Cancel anytime from My Account; access runs to the end of the paid month.
One CiviLanso account works across every app. Try the free demo first — no card required.
Worked example — NULU Crossing, 17 ft cantilever

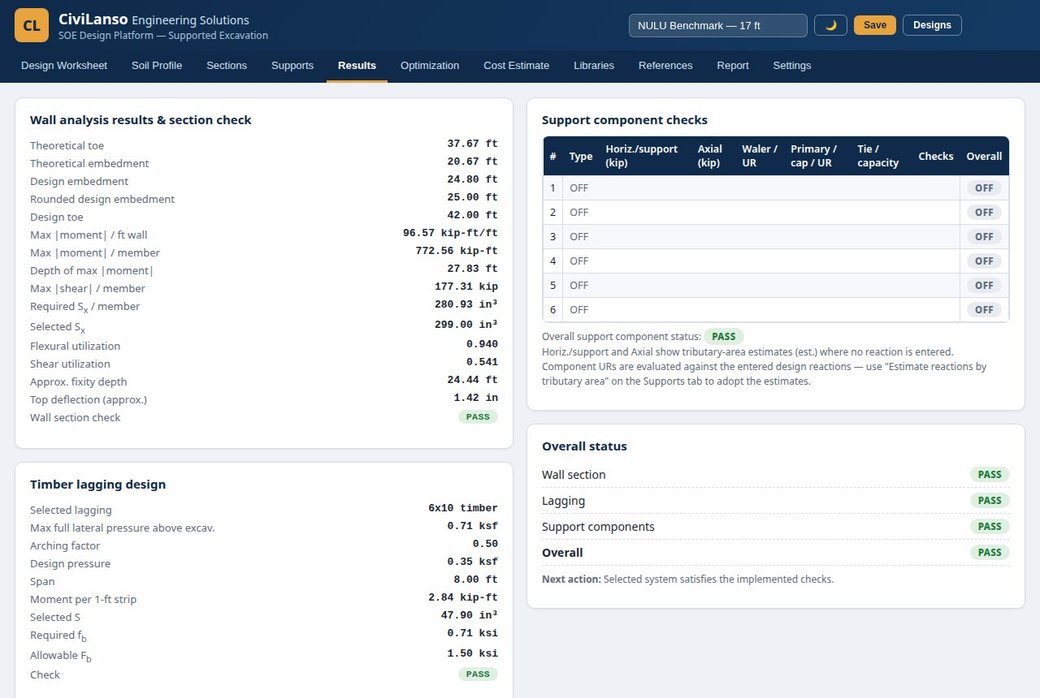

The benchmark design ships in the app as an example. A 17 ft retained height in silty clay over loose sand, designed as a cantilever soldier pile wall at 8 ft spacing. The app reproduces the published GEI calculation: Mmax 772.56 kip-ft at z = 27.83 ft, Sx required 280.93 in³, deflection 1.42 in — and the optimiser finds a lighter W30X108 that also passes.
Details
| Method | Effective-stress (Rankine) pressures; free-earth cantilever toe search or supported analysis |
|---|---|
| Sections | 181 W-sections + 16 timber lagging sections, auto-optimised |
| Supports | Props, tiebacks, rakers and deadman — capacity checks included |
| Checks | Flexure, shear, deflection (with fixity calibration), lagging, support capacity |
| Optimisation | Minimum section and maximum spacing for the wall you entered |
| Outputs | Branded Word (.docx) and PDF calculation report + cost estimate with editable Texas rates |
| Platform | Runs in the browser; designs save to your account and sync across devices |
| Demo | Free demo — full designer, exports disabled |
