Soil Nail Wall Designer
FHWA GEC 11 soil nail walls — bond, facing, block, global stability and corrosion in one 13-step report.
Launch Soil Nail Wall Designer Subscribed

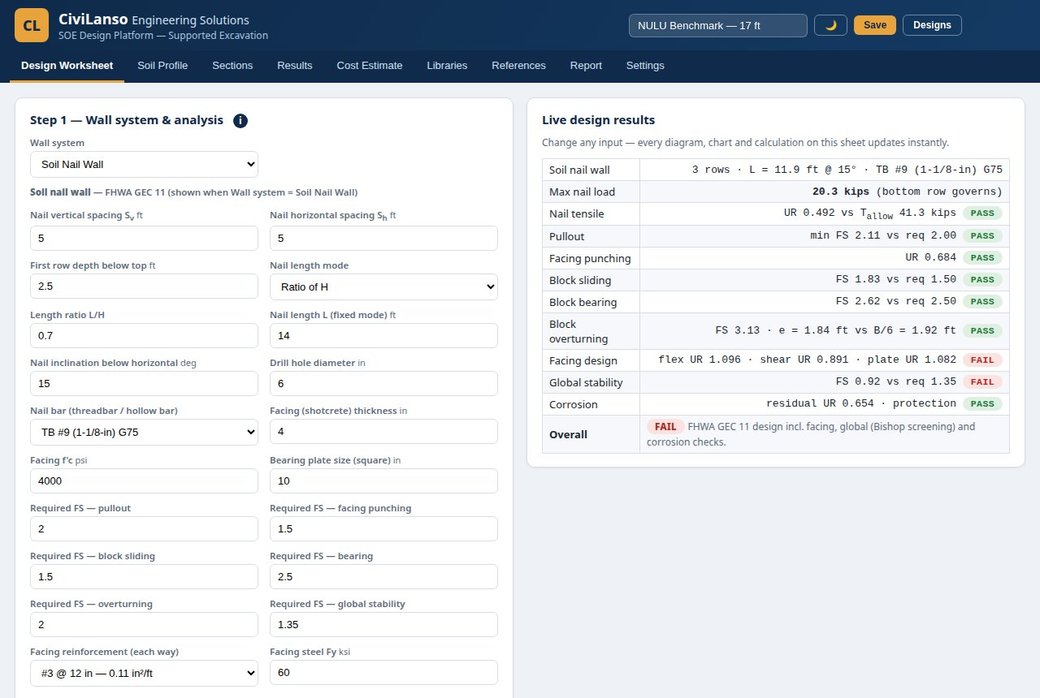

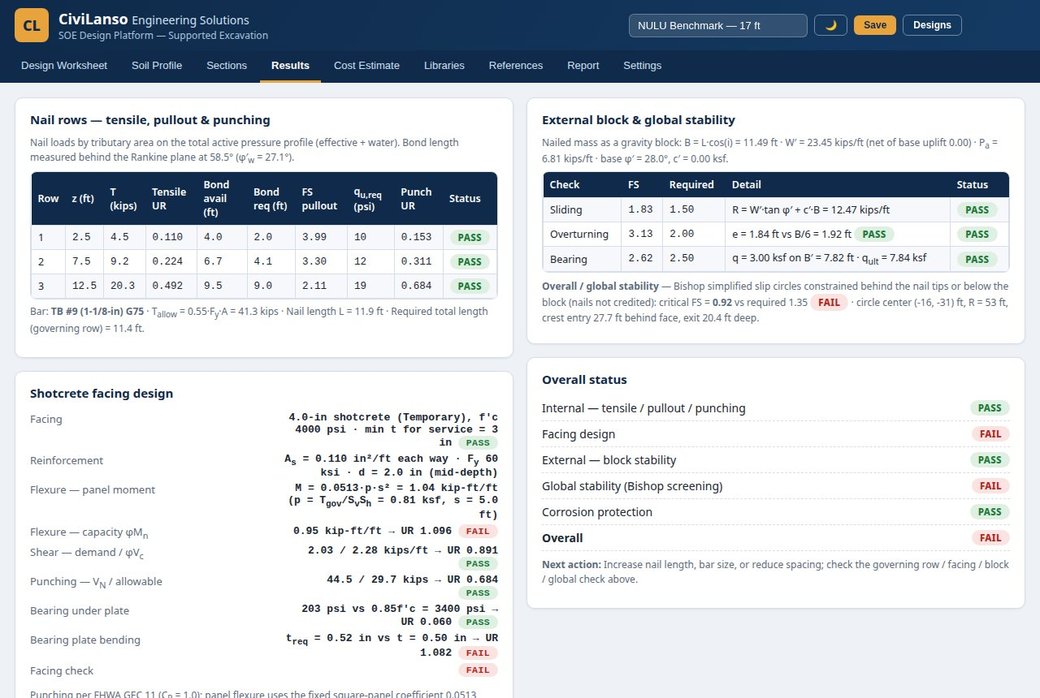

Inside the app
Screenshots from the real app — what you see is what you get.
What it does
The SOE Design Platform locked to soil nail walls: tributary nail loads on total active pressure, tensile and pullout checks with per-row required bond, reinforced shotcrete facing design, nailed-block external checks, Bishop global-stability screening and corrosion allowance.
Features
- FHWA GEC 11 (FHWA-NHI-14-007) ASD method
- Per-row required bond q_u,req vs assumed q_u
- Reinforced shotcrete facing: flexure, shear, plate bearing/bending
- Nailed-block sliding, bearing and overturning
- Bishop slip-circle global stability screening
- Corrosion: sacrificial area + protection-class adequacy
- 13-step branded Word (.docx) and PDF reports
How it works
- Enter soils, nail pattern and bond values
- Review internal, facing and block checks
- Check global stability and corrosion
- Export the 13-step calculation report
Subscription
$39 / month — billed monthly, per app. Cancel anytime from My Account; access runs to the end of the paid month.
One CiviLanso account works across every app. Try the free demo first — no card required.
Worked example — the FHWA GEC 11 wall, 20 ft
The FHWA worked example ships in the app: a 20 ft soil nail wall with TB #9 (1-1/8-in) Grade 75 bars. Tensile utilisation 0.42, governing-row pullout FS 4.75, block sliding FS 2.68, facing flexure utilisation 0.95, corrosion residual utilisation 0.56, and global stability FS 1.37 against 1.35 required — overall PASS.
Details
| Method | FHWA GEC 11 (FHWA-NHI-14-007) ASD — tributary nail loads on total active pressure |
|---|---|
| Nail bars | 10 bars: Threadbar (Grade 75) + self-drilling hollow bars |
| Checks | Tensile, pullout (per-row required bond q_u,req vs assumed q_u), facing punching |
| Facing | Reinforced shotcrete — panel flexure, one-way shear, plate bearing and bending |
| External | Nailed-block sliding, bearing and overturning |
| Global | Bishop slip-circle screening behind the nail tips / below the block, nails not credited |
| Corrosion | Sacrificial-area residual tensile + GEC 11 protection-class adequacy |
| Outputs | 13-step branded Word (.docx) and PDF calculation report + cost estimate |
| Platform | Runs in the browser; designs save to your account and sync across devices |
| Demo | Free demo — full designer, exports disabled |
